RC 2022 week 8 days 2 & 3 - images to sound

2022-09-28

I spent today and yesterday working on turning images into sounds. I'd ultimately like to make a programmable environment sound make, when I have all the hardware I need.

I used Python, which has a lot of cool libraries for both image and sound processing. And this article helped me a lot.

step one: processing photos

First, I processed the photo with Connected Component Analysis. These are some photos before and after the analysis:

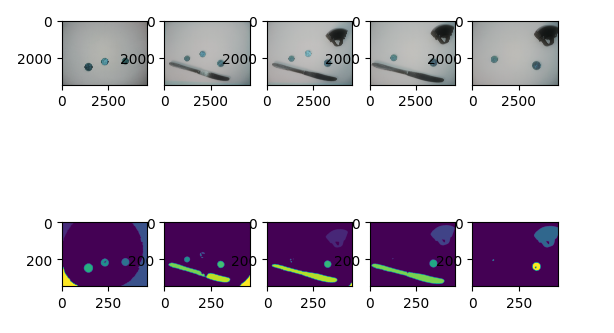

Two rows, each of five small images. The first row is photos of household objects on a white background. The second row are the photos after being processed with CCA: purple backgrounds, with the objects blocks in different colors.

step 2: generating sound

Then I mapped different attributes of each blob in the processed image to different components of a sound. For example, the blob area maps to the frequency.

This is my first attempt - here the frequency is based purely on the area. different. It's quite unpleasant to listen to:

I then added some tuning - ranges of frequencies get mapped to a single (in tune) frequency. It sounds slightly better:

next steps

I'm not sure where I'll go next with this project, here are some of the things I'm thinking about:

What is the most intuitive mapping of image component attributes to sounds? I'm especially thinking about what would be intuitive if/when this becomes a hardware project.
How much do I want to tune vs have the sounds be raw representations of the image? Do I even want to try to make this sound good?
What other aspects of the sounds could I change to improve or alter the sounds? I don't know much about sound or music theory, so this is pretty open ended

update 2022-09-30:

I experimented a bit with different amplitudes and phrase length & repetition. I think this sounds a bit more interesting:

The code is here.
